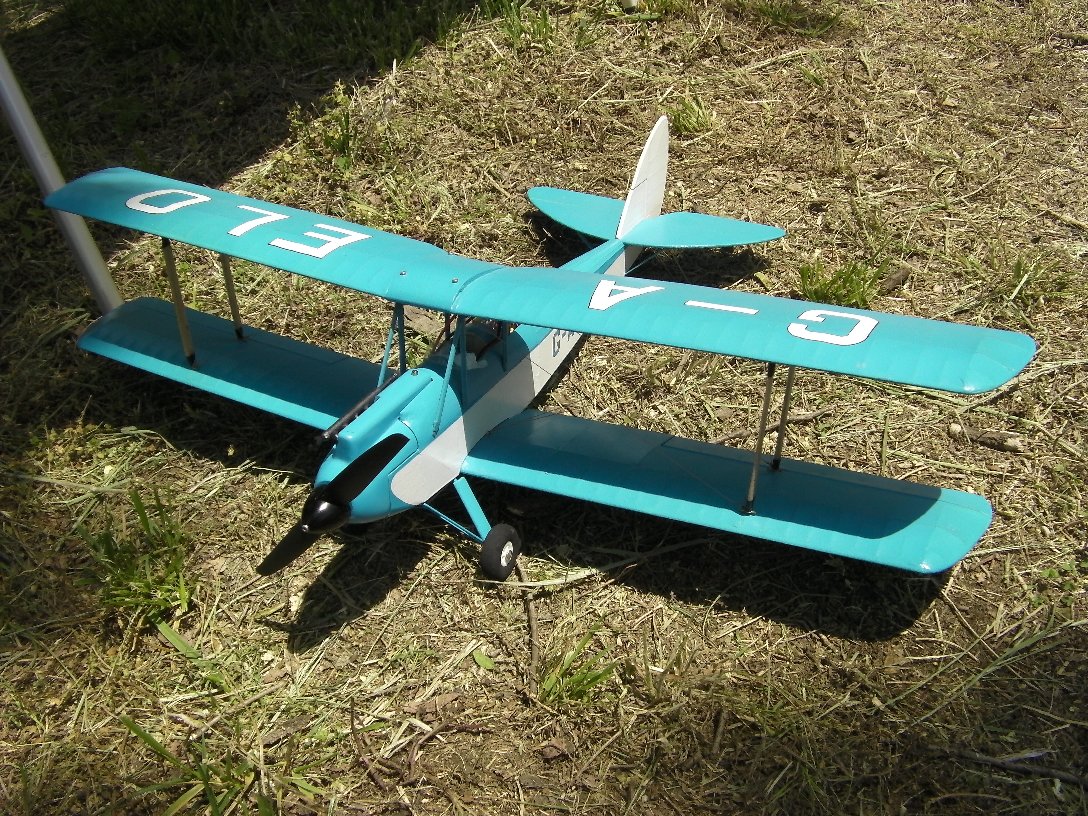

Gypsy Moth

 Kits   木下さん
Wing: 640 (mm)  12.16 (dm^2)  Length:500 (mm)
Flight Weight: 265 (g)
Motor: CT2211-1700
Propeller: GWS  7035
Battery: 2-350  Li-PO  7.4(V)
Propo: Power: BEC  Band:21
Description: 自設計。紙貼り、プラカラー仕上げ。
This airplane has been featured in the following events.

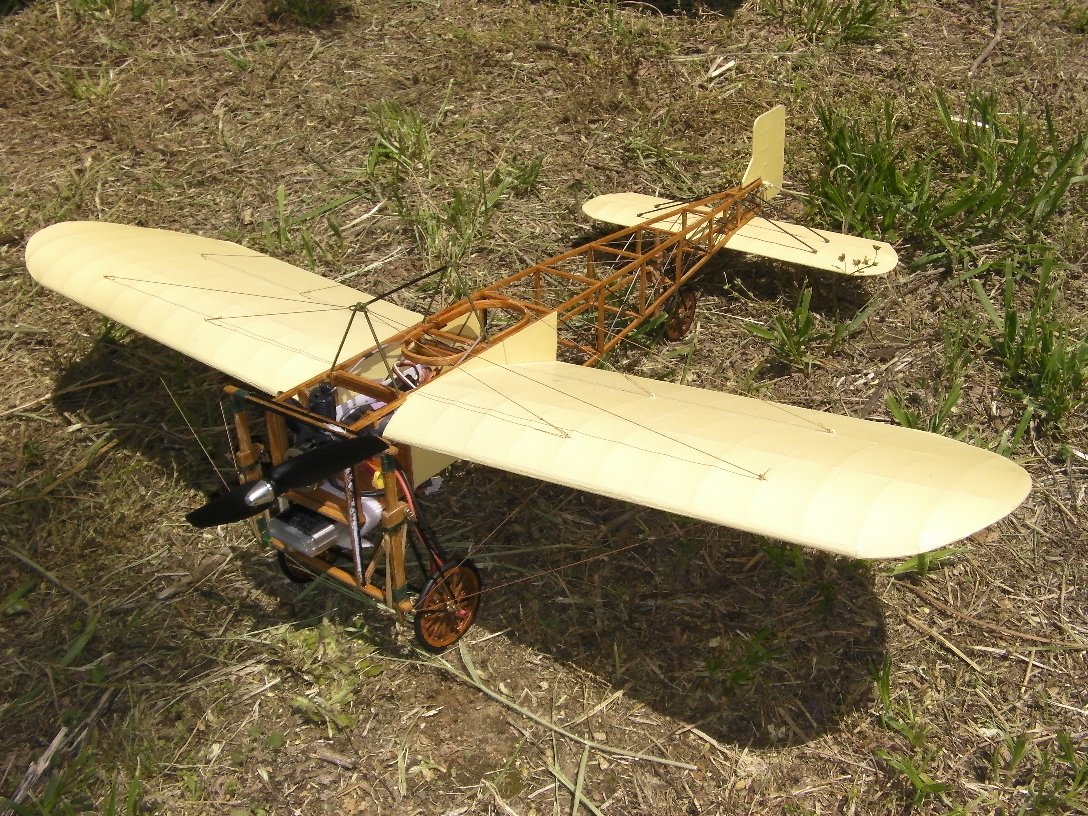

Bleriot Xl La Manche

 Scratch Build  木下さん
Wing: 610 (mm)  15.75 (dm^2)  Length:510 (mm)
Flight Weight: 185 (g)
Motor: CT2211-1700
Propeller: GWS  7035
Battery: 2-600  Li-PO  7.4(V)
Propo: Power: BEC  Band:2.4G
Description: 前回のスケール機の50%OFF
紙貼り、プラカラー仕上げ。
This airplane has been featured in the following events.

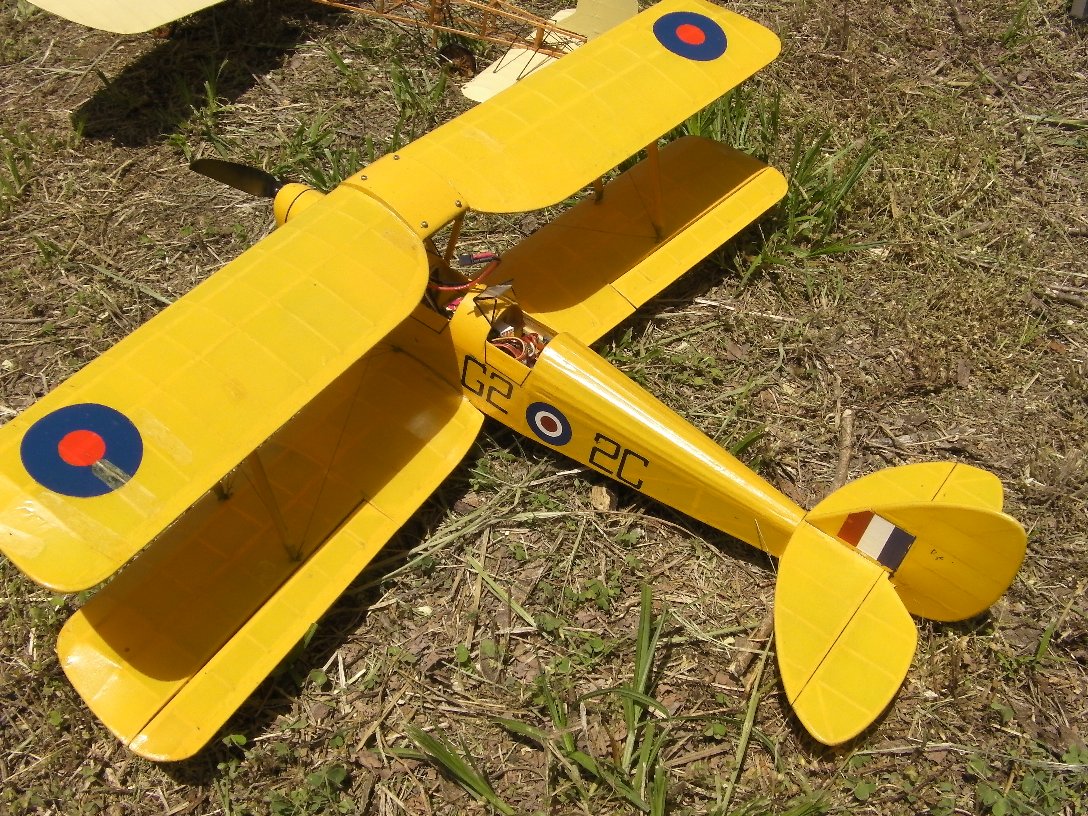

TIGER MOTH

 Scratch Build  木下さん
Wing: 480 (mm)  10.56 (dm^2)  Length:480 (mm)
Flight Weight: 215 (g)
Motor: CT2211-1700
Propeller: GWS  7035
Battery: 2-450  Li-PO  7.4(V)
Propo: Power: BEC  Band:81
Description: 紙貼り、プラカラー仕上げ。
TIGER MOTH
This airplane has been featured in the following events.

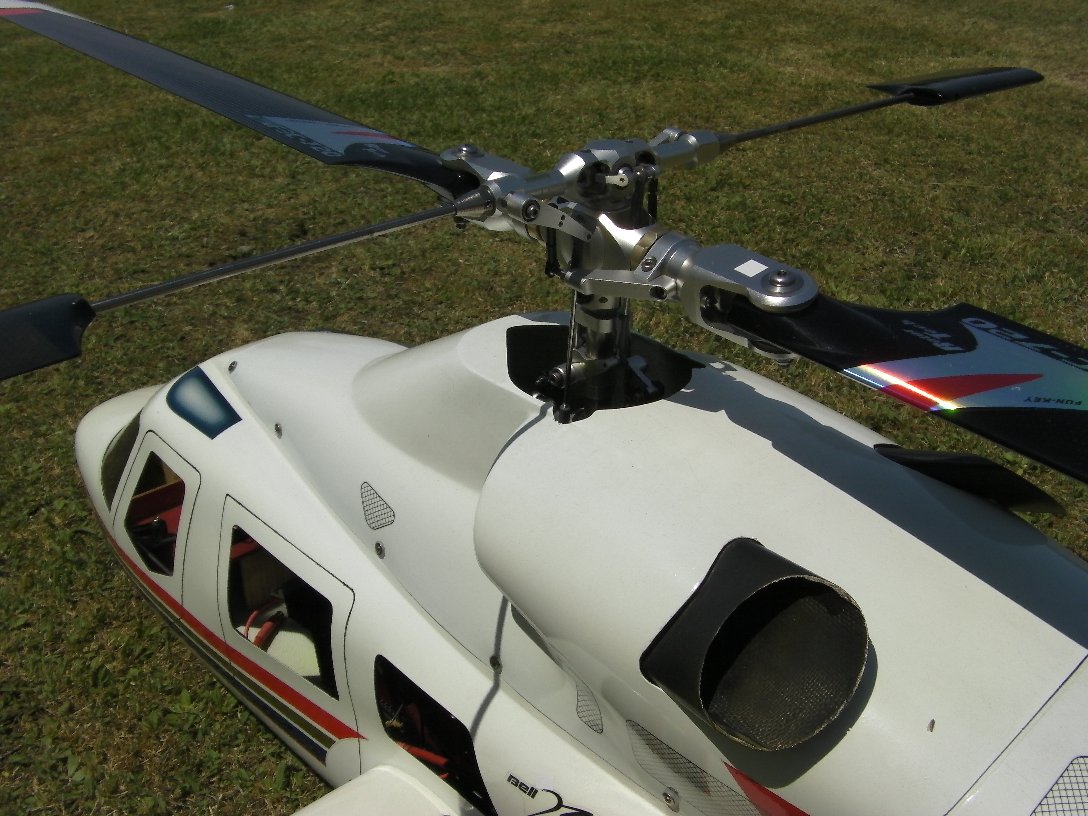

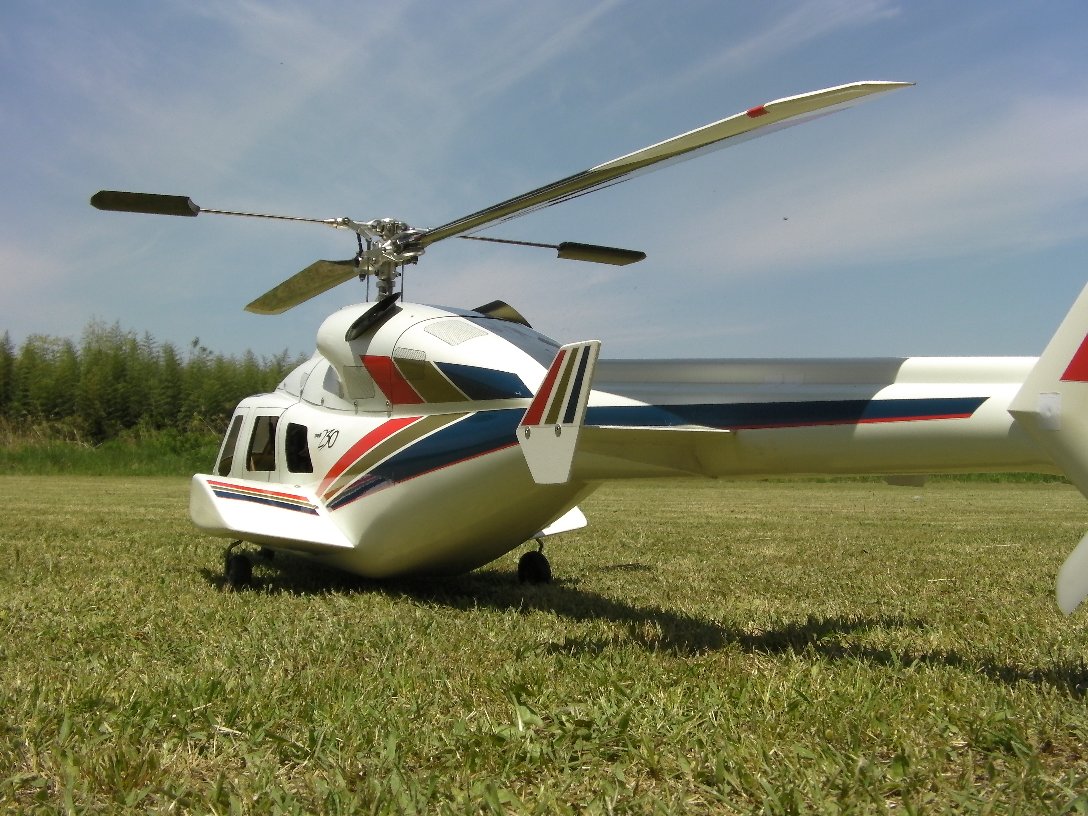

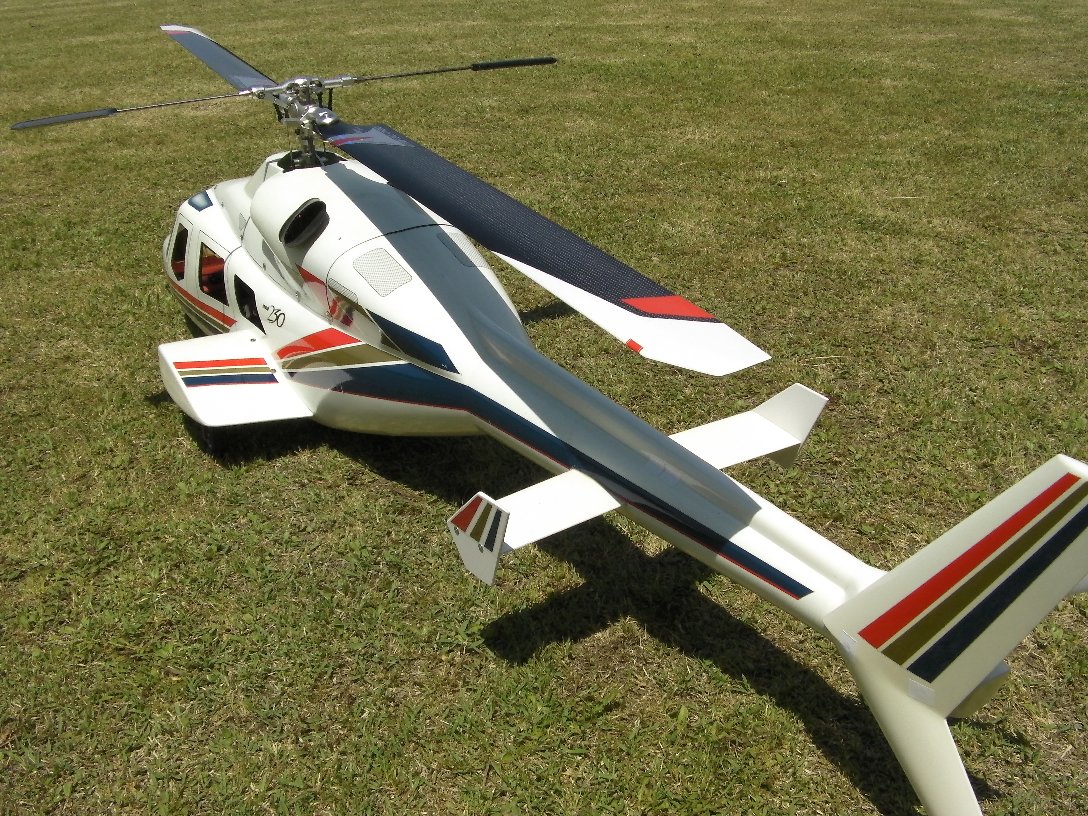

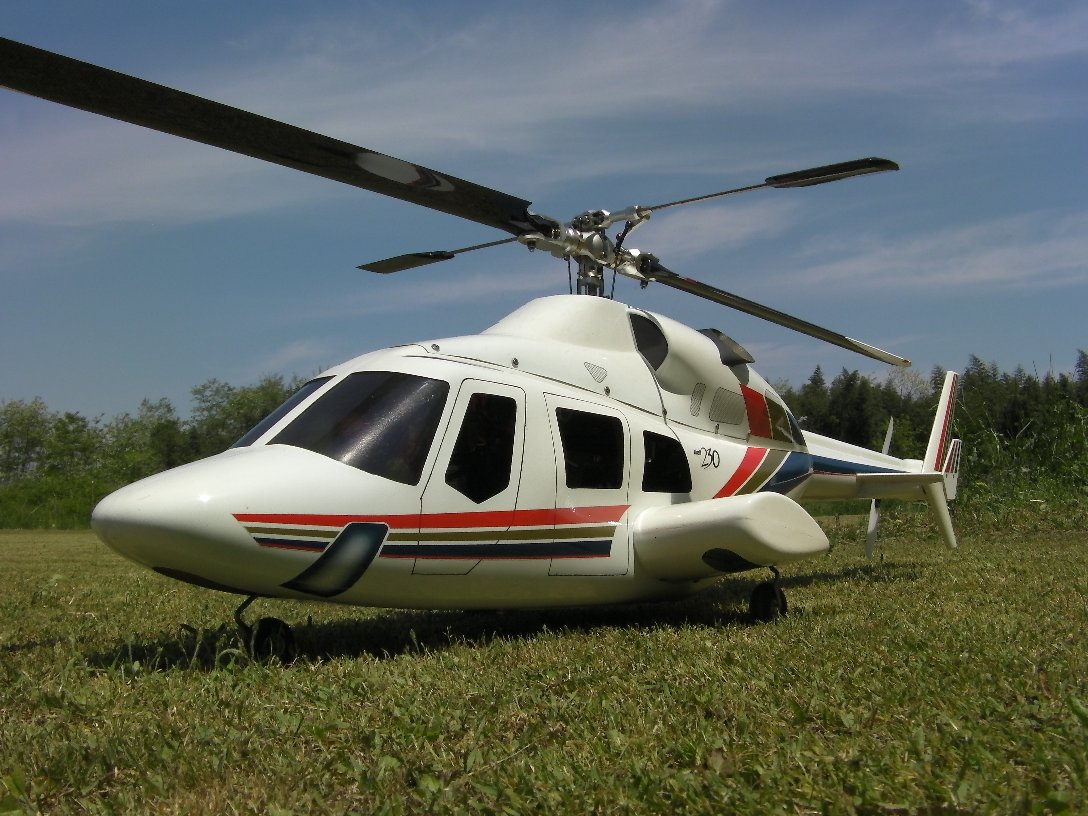

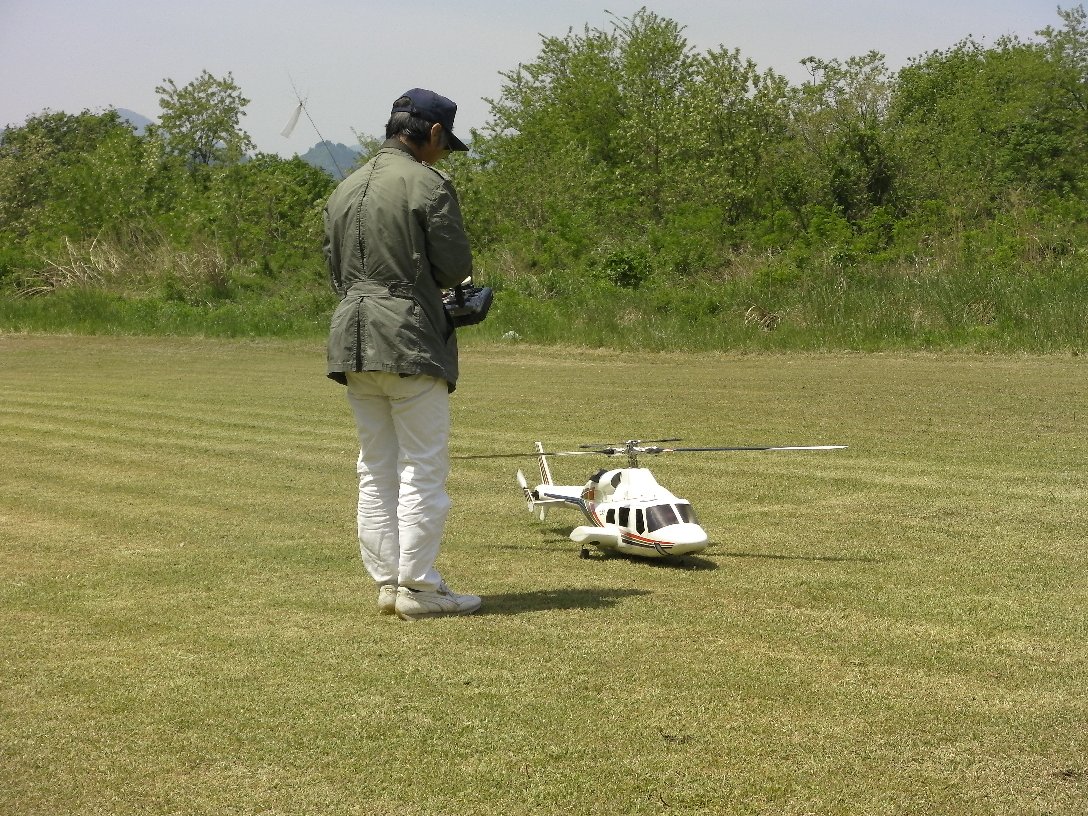

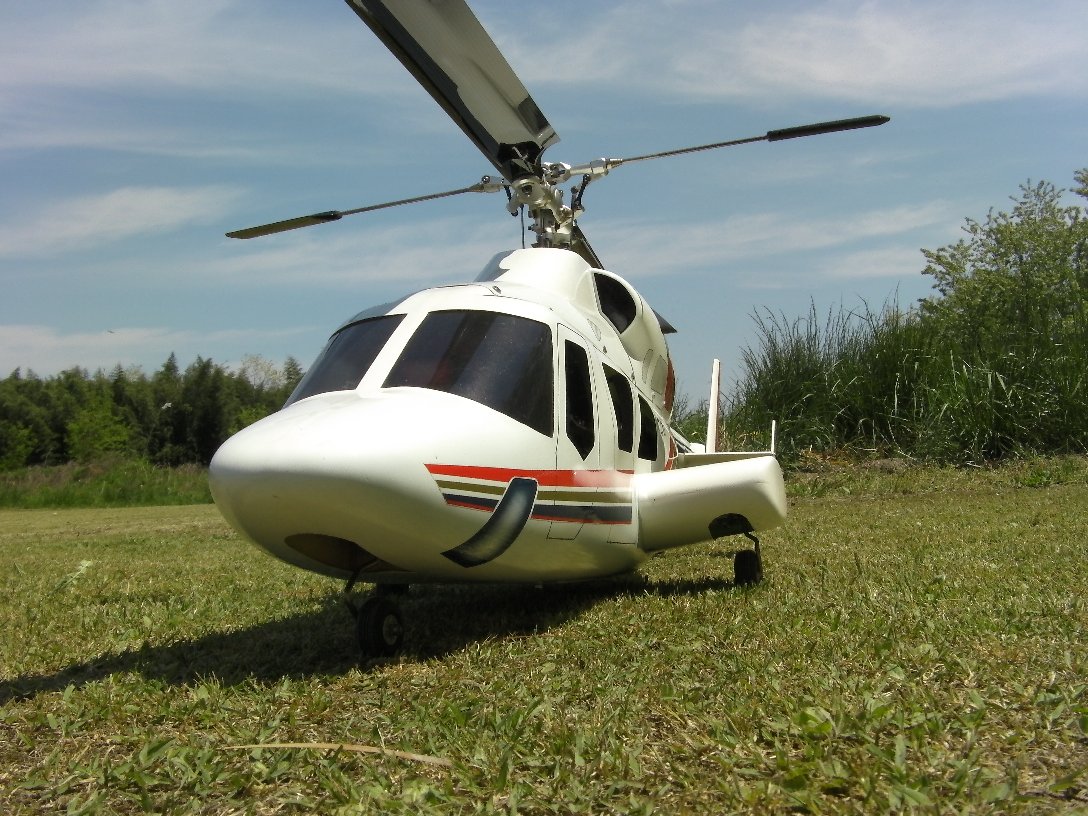

ベル230

 Kits   荻島さん  ⇒Home Page
Wing: 1600 (mm)  200 (dm^2)  Length:1630 (mm)  Wing:カーボン  Fuselage:FRP
Flight Weight: 7000 (g)
Motor: PT-90440
ESC: JETI-Spin125
Gear: Gear Ratio:9.2:1
Propeller: 1520(rpm)  75 Max(A)
Battery: 12-5000  Li-PO  44.4(V)  Flight Time:6 (Minute)
Propo: JR  10X  RD-931  8325 Power: Other  2  1300(mAh)  Band:2.4GHz
This airplane has been featured in the following events.

ミラージュ4000

 Kits   荻島さん  ⇒Home Page
Wing: 780 (mm)  Length:1160 (mm)  Wing:発泡スチロール  Fuselage:発泡スチロール
Flight Weight: 1150 (g)
Motor: CS480-4100
ESC: ICE100
Battery: 4-2650  Li-PO   Flight Time:4 (Minute)
Propo: JR  XG7  6CH  2 Power: BEC  Band:2.4GHz
This airplane has been featured in the following events.

ファイヤーバード

 Kits   荻島さん  ⇒Home Page
Wing: 730 (mm)  Length:730 (mm)  Wing:ハッポウ  Fuselage:ハッポウ
Flight Weight: 550 (g)
Fan: 70 (mm) 30,000(rpm)  30(A)   Volt Current:11.1(V)
Battery: 3-2200  Li-PO  11.1(V)  Flight Time:3 (Minute)
Propo: JR  XG7  RG411  2 Power: BEC  Band:2.4GHz
This airplane has been featured in the following events.

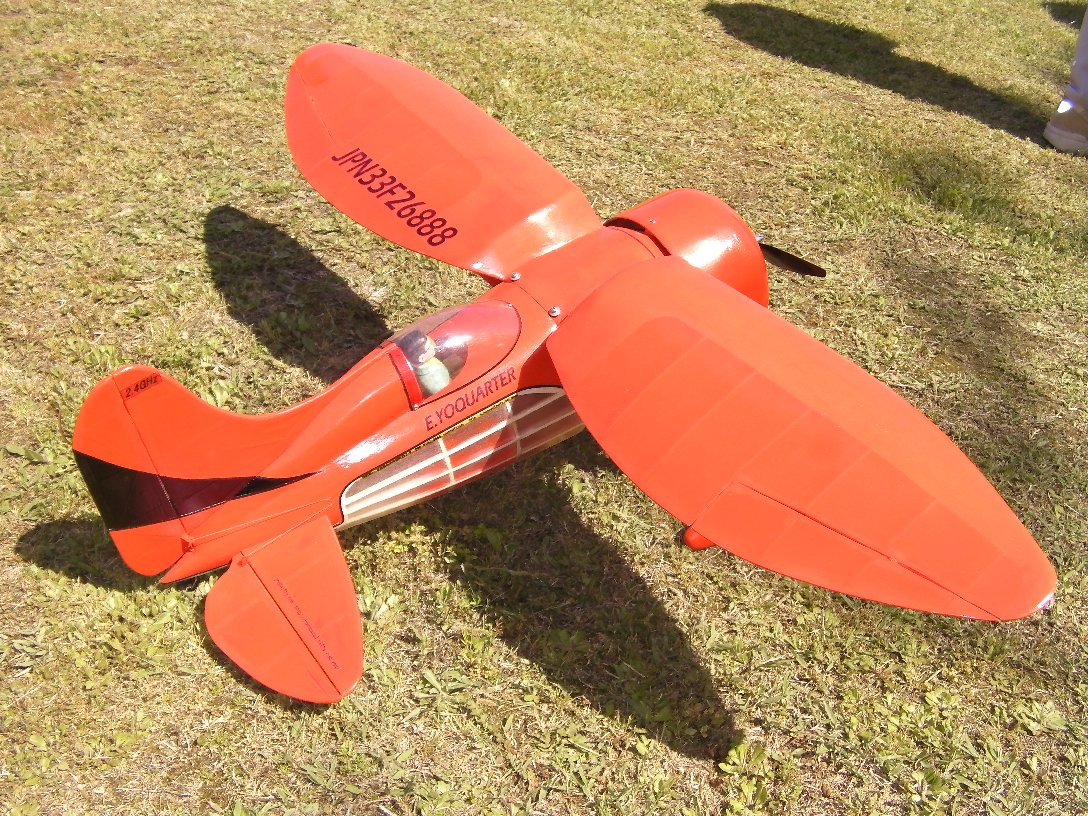

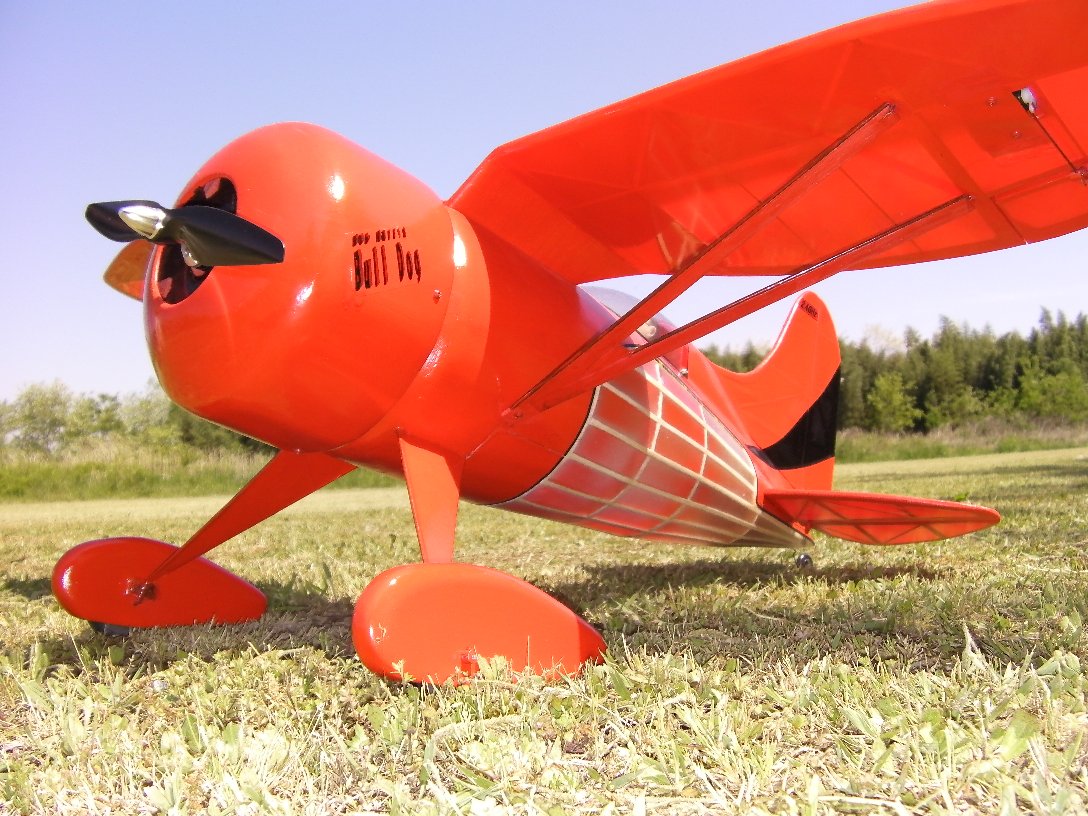

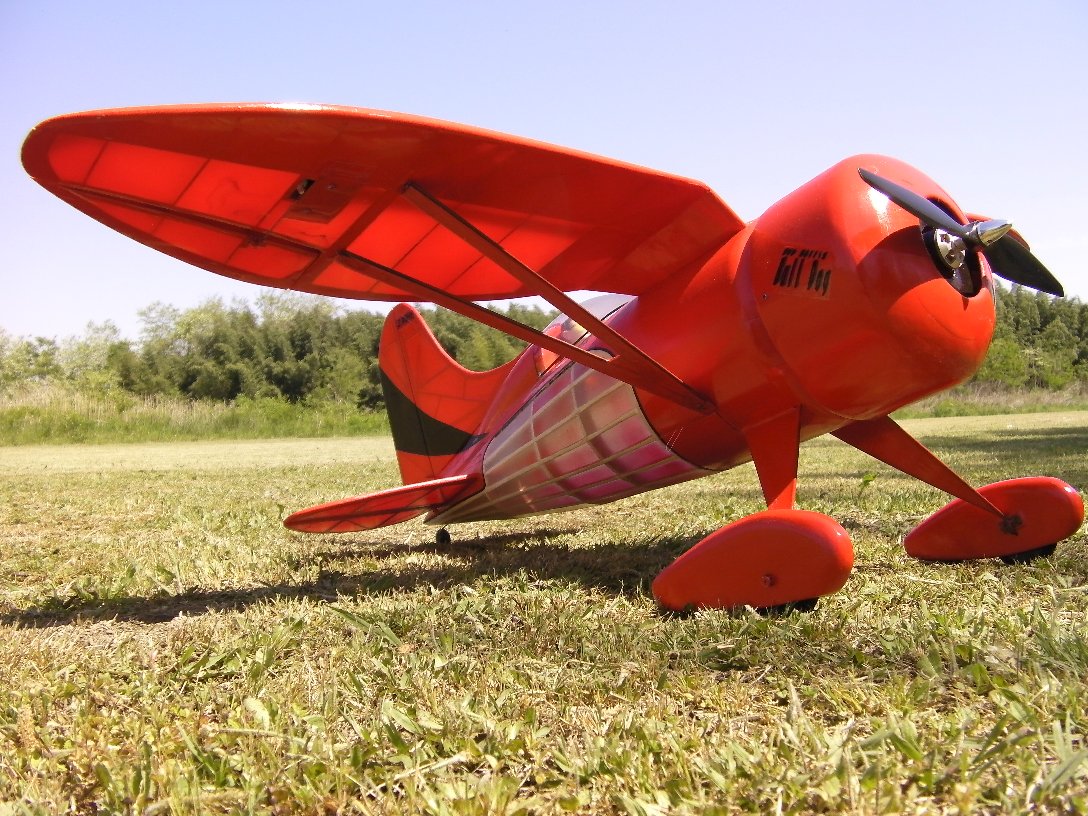

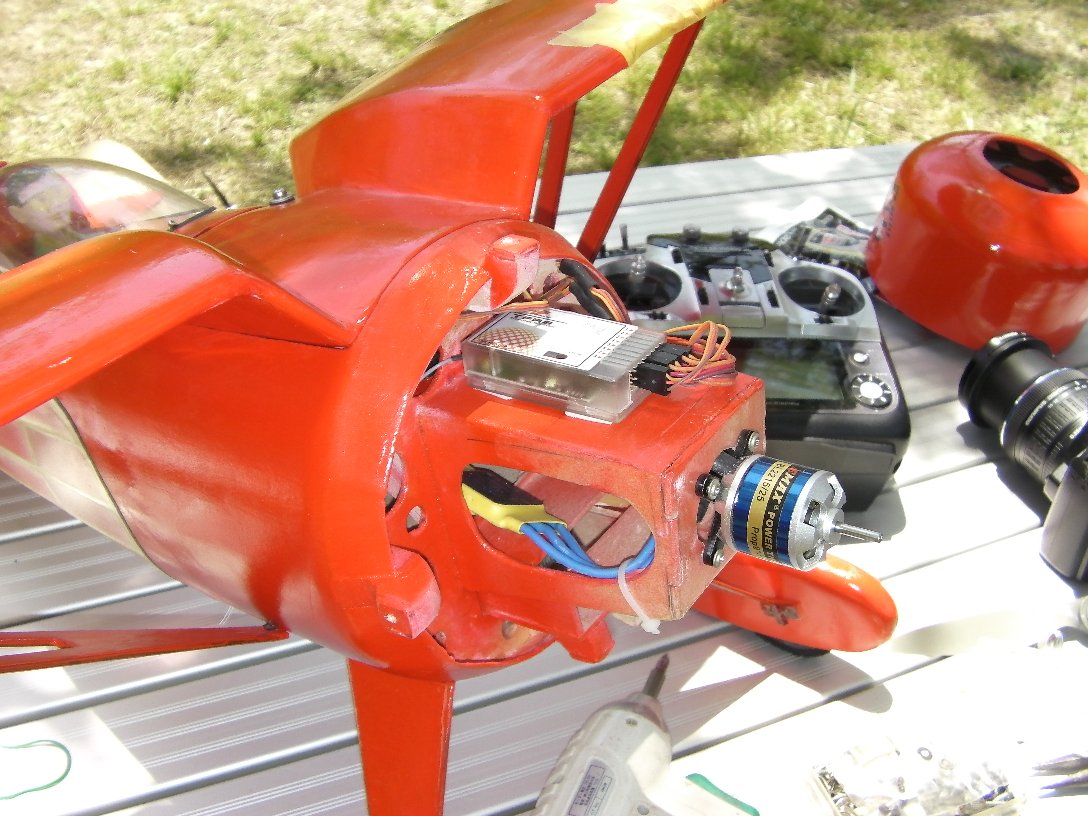

Bull Dog

 Scratch Build  横田さん  ⇒Home Page
Wing: 1005 (mm)  15.5 (dm^2)  Length:880 (mm)  Wing:バルサ  Fuselage:バルサ
Flight Weight: 830 (g)
Motor: 2215-25-950
ESC: 25A
Gear: Gear Ratio:1
Propeller: 京商  9x5.5  7800(rpm)  9.9(A)   Volt Current:10(V)
Battery: 3-2000  Li-PO  11.1(V)  Flight Time:13.4 (Minute)
Propo: FUTABA  12FG  4 Power: BEC  Band:2.4GHz
Description: 往年のエアレーサのスケール機 初飛行です。
This airplane has been featured in the following events.

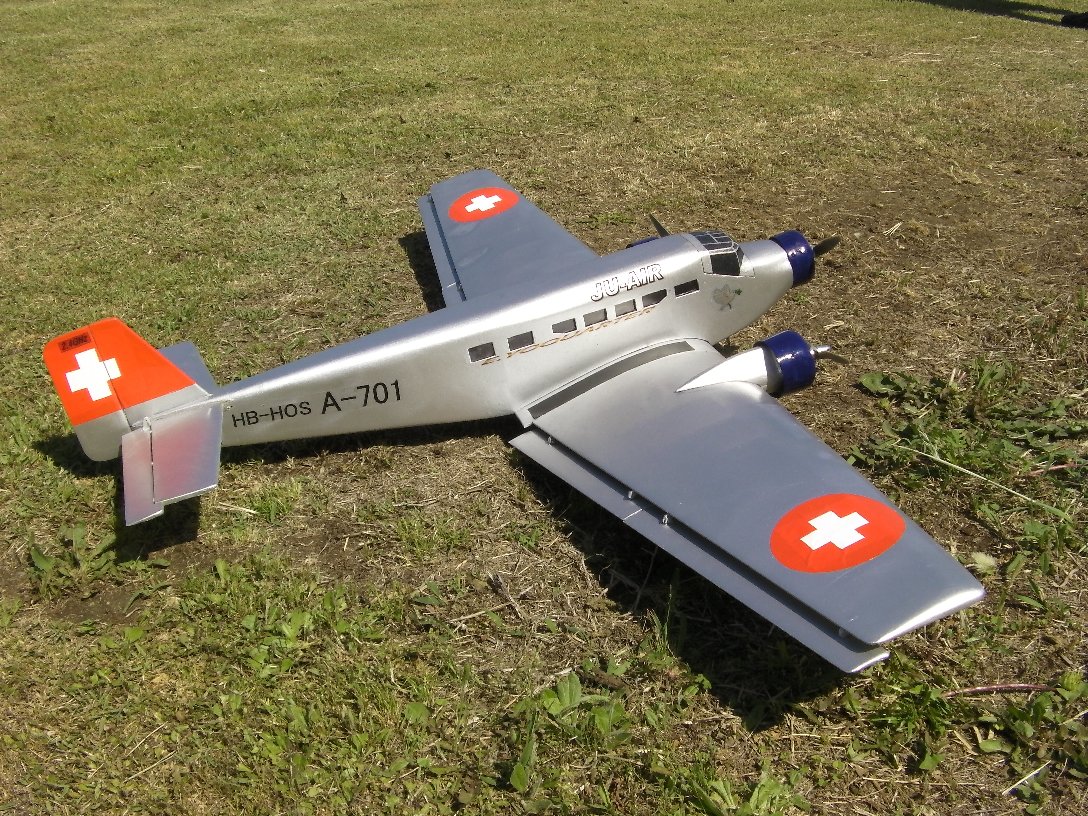

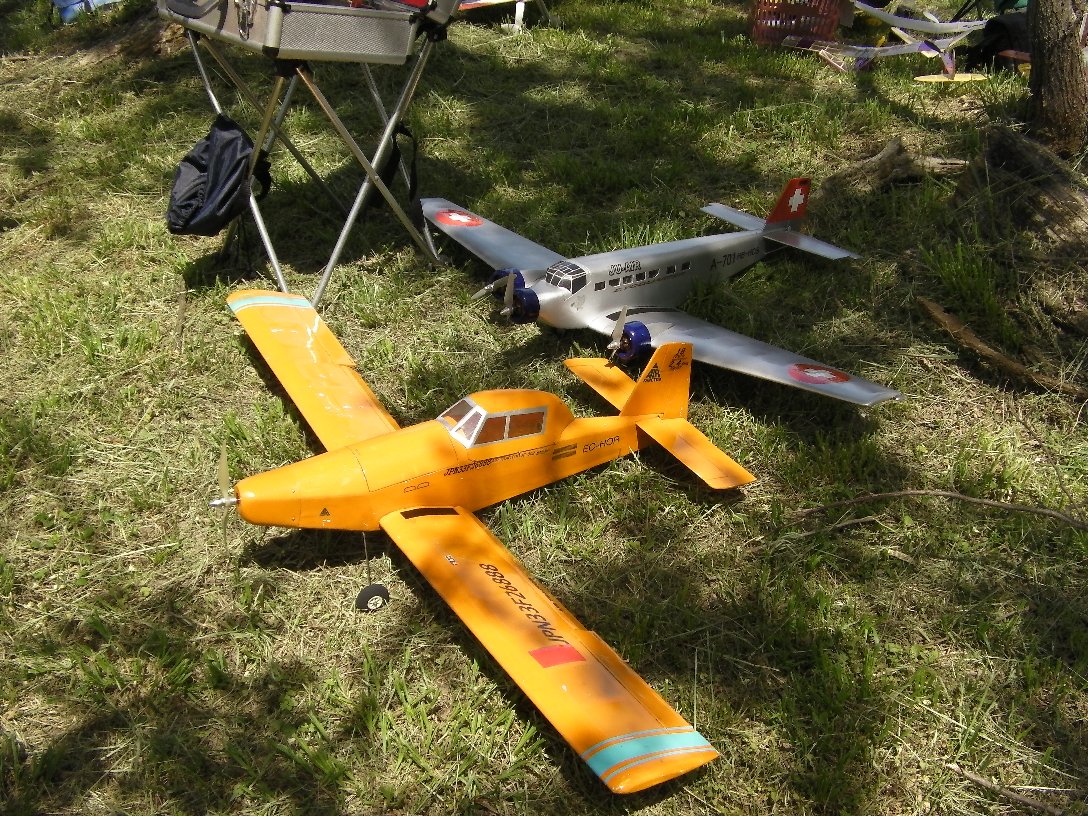

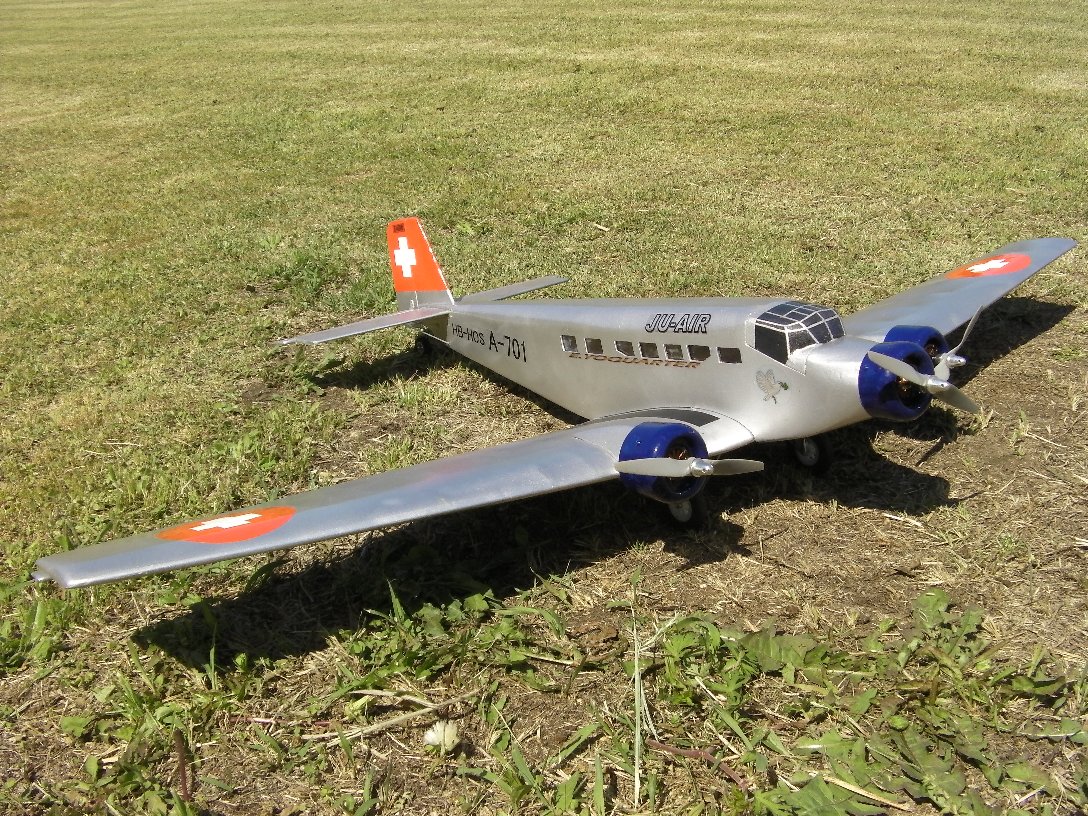

JU52m3

 Scratch Build  横田さん  ⇒Home Page
Wing: 1200 (mm)  20 (dm^2)  Length:880 (mm)  Wing:バルサ  Fuselage:バルサ
Flight Weight: 960 (g)
Motor: 2205-155x3
ESC: 10Ax3
Gear: Gear Ratio:1
Propeller: 6x4  12000(rpm)  19.2(A)   Volt Current:10(V)
Battery: 3-2000  Li-PO  11.1(V)  Flight Time:6.2 (Minute)
Propo: FUTABA  12FG  7ch  6 Power: BEC  Band:2.4GHz
Description: 三発機、初飛行です。
JU52m3
JU52m3
This airplane has been featured in the following events.
